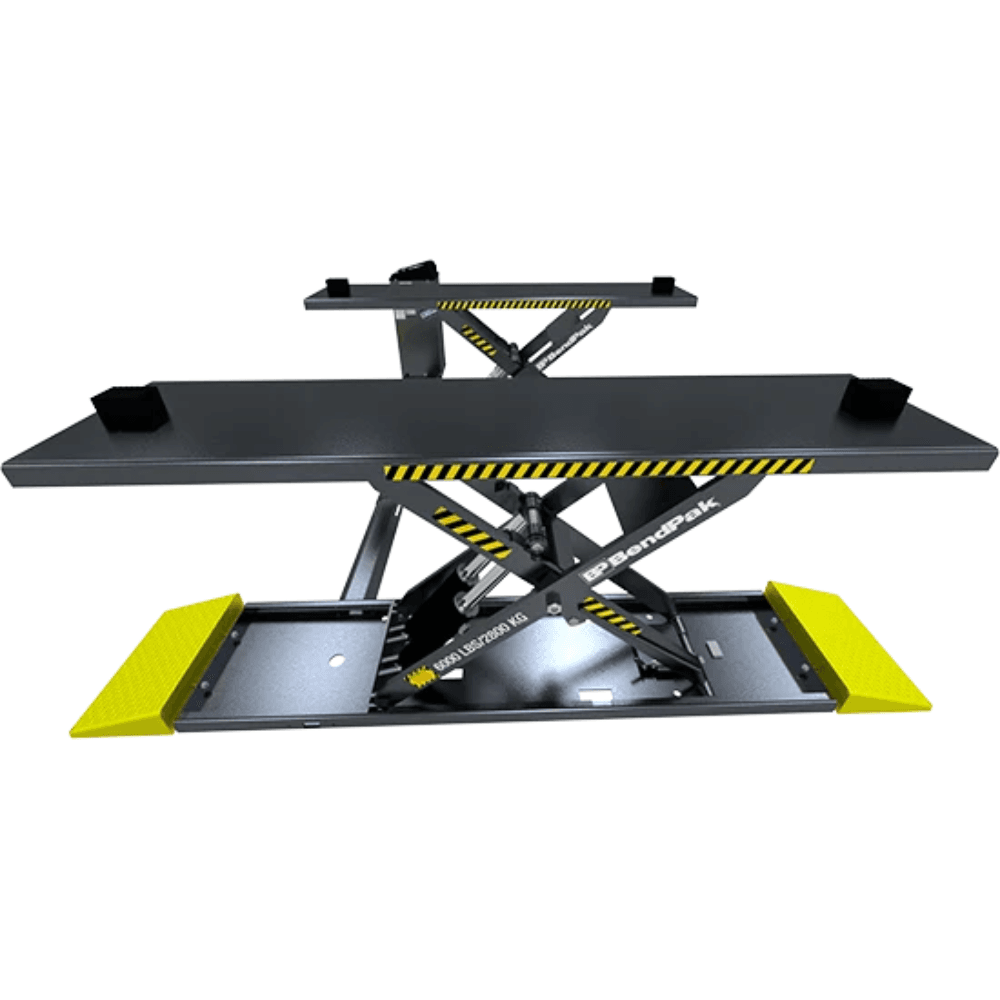

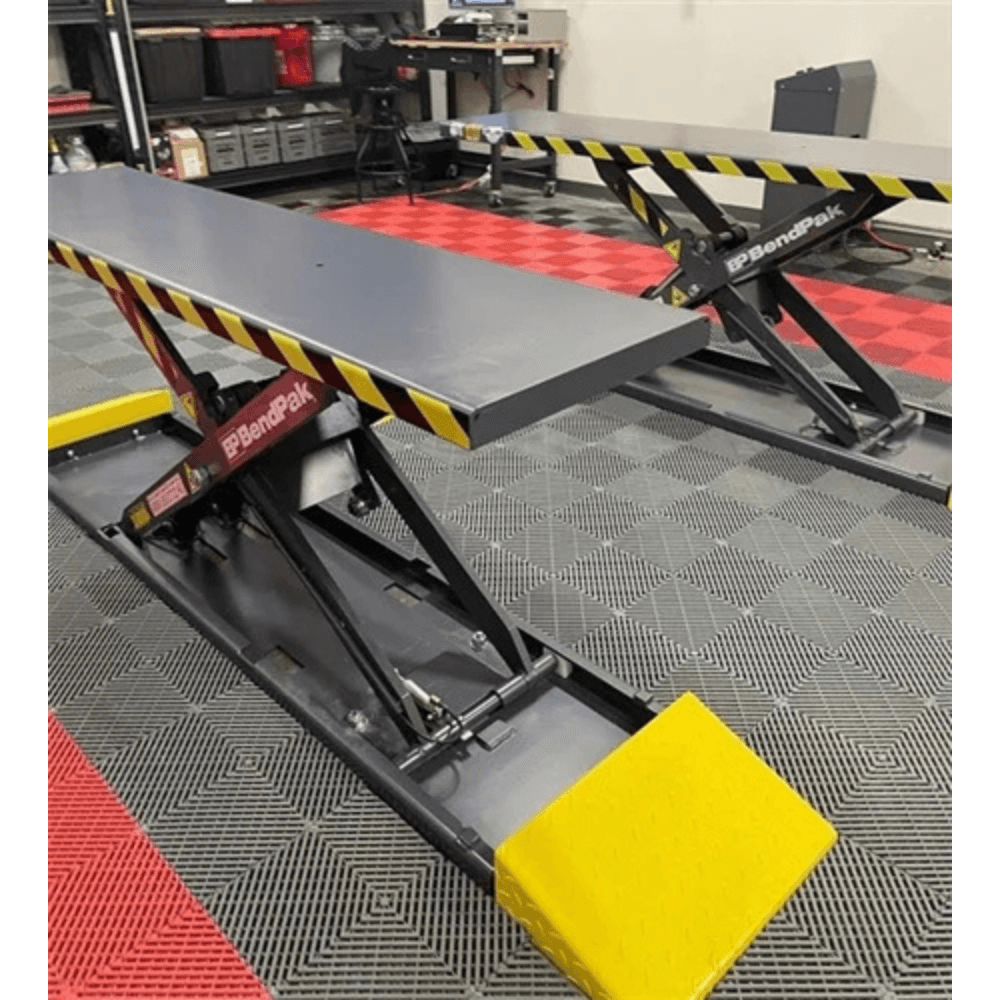

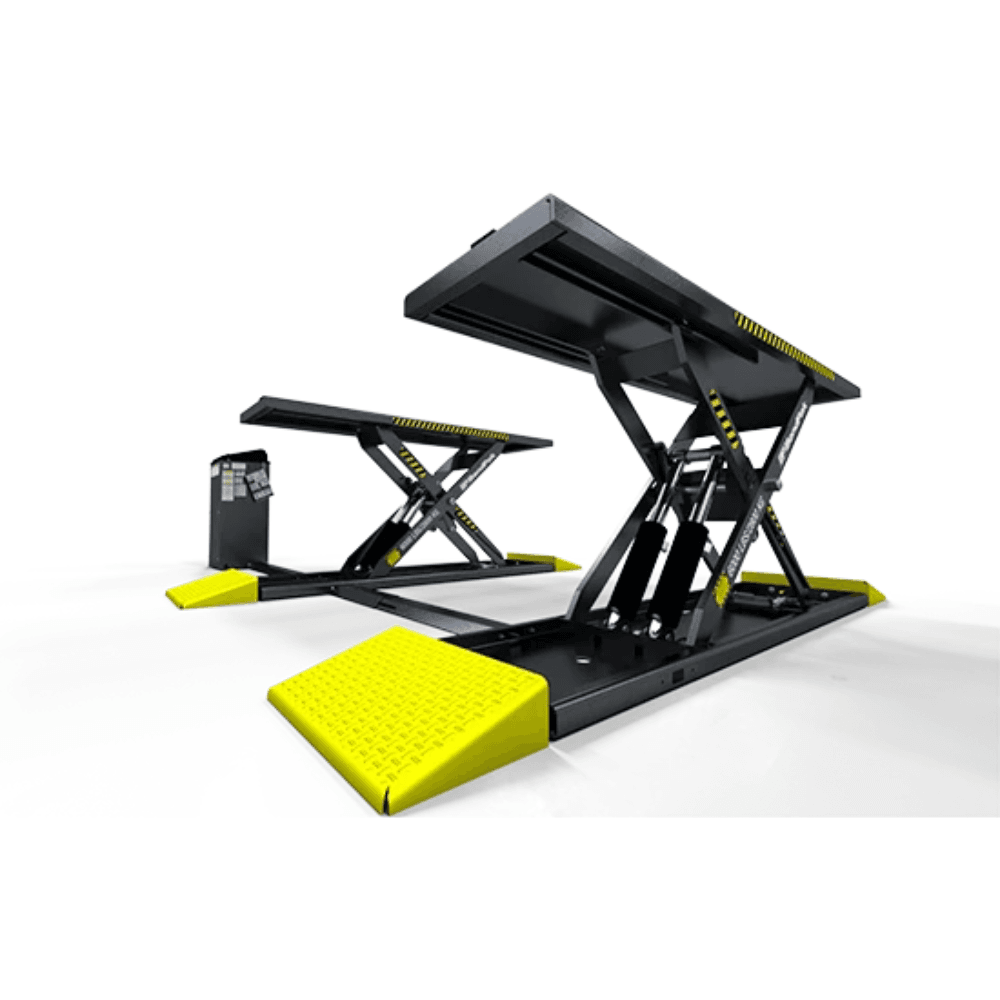

The MDS-6EXT is an extended-platform mid-rise scissor lift built for professional workshops and serious home garages. A 6,000 lb. capacity and open-centre layout leave the underside of the vehicle clear, which makes it a natural fit for wheel, brake and suspension work. A pneumatic kicker adds lifting force over the first few inches of travel, so the lift starts smoothly from fully collapsed rather than fighting mechanical resistance at the bottom of the stroke.

• 6,000 lb. lifting capacity – suits cars, SUVs and light-duty trucks
• Extended platform accommodates longer wheelbases
• Pneumatic kicker system assists through the first 6" of lift
• Four solid steel scissor-frame support bars for stability under load
• Dual master hydraulic cylinders and dual equalizing cylinders keep both platforms even
• Automatic solid-steel safety lock bars engage on the way up
• Stainless-steel pneumatic cylinders with push-button lock release

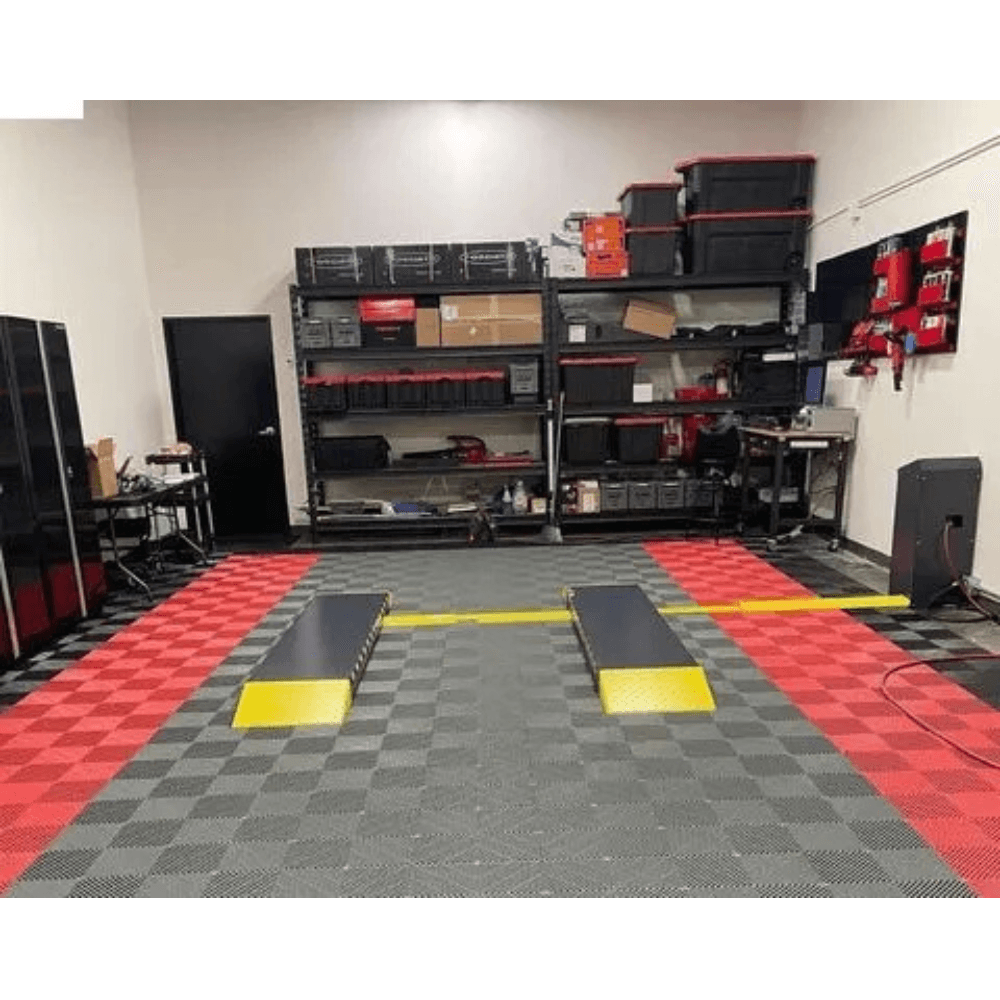

• Collapses to 5.25" – workable in garages with limited headroom and floor space

Technical Summary
Lifting capacity: 6,000 lbs
Lifting height (min): 5.25"
Lifting height (max): 35"
Width: 85"
Length: 88"
Voltage: 208–240V
Air requirement: min. 50 PSI, 10 CFM
